Custom Floor Plans |
||||||||||||||
 |
||||||||||||||
Floor Plans |
 |
|||||||||||||
| Custom drawings can be done for your gym. These drawings are designed to help you plan your new gym or remodel your present gym. The drawings will give you equipment arrangements that you may not have thought of as well as many new ideas. Your finished custom floor plan set of 5 drawings for each different layout. | ||||||||||||||
| The 5 Drawing Set will contain the following for 1 complete Layout: | ||||||||||||||

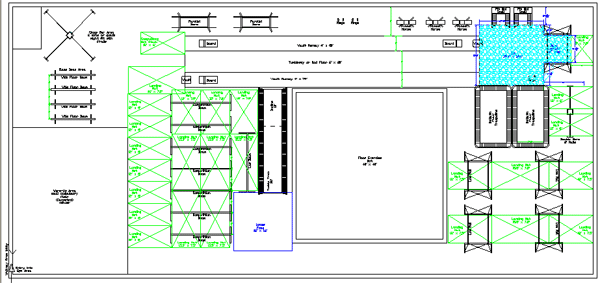

| 1- A complete floor layout with and equipment, mats, pits and dimensions for exact placement | ||||||||||||||
| 2- A "Note Page" with ideas, suggestions, and alternatives | ||||||||||||||
| 3- The pit(s) only with exact dimensions and placement dimensions | ||||||||||||||
| 4- The apparatus only placement with dimensions | ||||||||||||||
| 5- The matting only placement with complete dimensions | ||||||||||||||
| All walkways and neutral areas are shown. The entry way, offices, restrooms, and spectator area can also be shown. | ||||||||||||||
| The 10 Drawing Set will contain each of the above pages for Two Complete Layouts: | ||||||||||||||
| - The individual event areas will show different layouts. | ||||||||||||||
| The 15 Drawing Set will contain each of the above pages for Three Complete Layouts: | ||||||||||||||
| - The big advantage to multiple layouts is that you will also see 2 or 3 different layout ideas for each event area. Many coaches end up choosing event ideas from different floor layouts and put them together into the "perfect" floor plan for their gym. | ||||||||||||||
| The following are some of the important points to consider: | ||||||||||||||
| - How many students can you train at one time? | ||||||||||||||
| - Beauty Vs Functionality! | ||||||||||||||
| - How big should the Pits be, and where should I put them? | ||||||||||||||
| - Pit Parameter is like Beach Front Property, don't waste an inch. | ||||||||||||||
| - Plan a rotational flow pattern of walkways | ||||||||||||||
| - How many bars & beams should I have? | ||||||||||||||
| - Competitive equipment vs class equipment. | ||||||||||||||
These and many other questions will be asked and answered before the complete "AutoCAD" drawing is begun. |
||||||||||||||
For further information or questions, please send us an E-Mail |
||||||||||||||
 |
||||||||||||||
 |
||||||||||||||
